Firefighter Self Contained Air Breathing Apparatus Composite Cylinder Set

China Firefighter Self Contained Air Breathing Apparatus Composite Cylinder Set supplier

Large Image :  Firefighter Self Contained Air Breathing Apparatus Composite Cylinder Set

Product Details:

Place of Origin: China
Brand Name: SEAMAN
Certification: CCS/EC
Model Number: SM97193

Payment & Shipping Terms:

Minimum Order Quantity: 5 set
Price: negotiation
Packaging Details: SCBA packing box, outside with export carton
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union
Supply Ability: 200 Set Month
Detailed Product Description
Product Name: SCBA Set Cylinder Material: Carbon Fiber Composite
Cylinder Volume: 6.8L/1800L Working Pressure: 300bar/ 30Mpa
Working Time: 55-60min Standard: SOLAS, EN136, EN137
Self-weight: 21Kgs

Firefighter Self - Contained Air Breathing Apparatus Composite Cylinder Set





This series of products are widely used in fire fighting, chemical industry, shipbuilding, petroleum, metallurgy, electricity, warehouses, laboratories, mines and other departments, for firefighters or emergency rescue personnel in smoke, gas, steam and oxygen and other conditions can be safe and effective conduct of fire fighting, disaster relief and rescue work, firefighters, and rescue and ambulance personnel to the ideal of personal respiratory protection equipment.



The main technical parameters



Model

L

Mpa

Max-L

L/min

Rlarm-Mpa

min

Kg

Packing cm

RHZK-5/30

5

30

1500

300

5~6

50

≤12

77×30×48

RHZK-6/30

6

30

1800

300

5~6

60

≤14

77×30×48

RHZKF-2/30

2

30

600

300

5~6

20

≤4

77×30×48

RHZKF-3/30

3

30

900

300

5~6

30

≤4.5

77×30×48

RHZKF-6.8/30

6.8

30

2040

300

5~6

60

≤8.5

77×30×48

RHZKF-6.8X2/30

13.6

30

4080

300

5~6

120

≤14.5

77×30×48

RHZKF-9/30

9

30

2700

300

5~6

90

≤11.5

77×30×48







SCBA structure, technical description



Cylinder



Storage of gas cylinders was used compressed air for human breathing high pressure containers, storage gas rated pressure 30MPa, Cylinder volume 6L.

Bottles of the first valve

its structured in two ways:

  1. external thread, thread size W21.8mm × 1 / 14 of inch thread connector.
  2. internal thread, thread of M22 × 1.5 or G5 / 8 "(14 teeth / inch) connector, commonly used at present for G5 / 8" (14 teeth / inch) thread.



Regulator



Decompression valve is the high-pressure gas into a constant output pressure of 0.7MPa for the valve after the gas supply device.



Back care



Formed by the shoulder strap and belt strap, can quickly adjust the length, so that back care close to the body back, Cylinder using quick fixtures fixed in care on the back for different diameter cylinders can be adjusted with a fixed length to be fixed.







high-pressure pipe, pressure display and alarm device



High pressure rubber hose, Pressure arrange:0~400bar

Alarming Pressure: 40~60bar



Full Face mask

the main body is made from silicone rubber, masks are equipped with a small nose and mouth and nose and mouth relative to paste cover.



Picture:

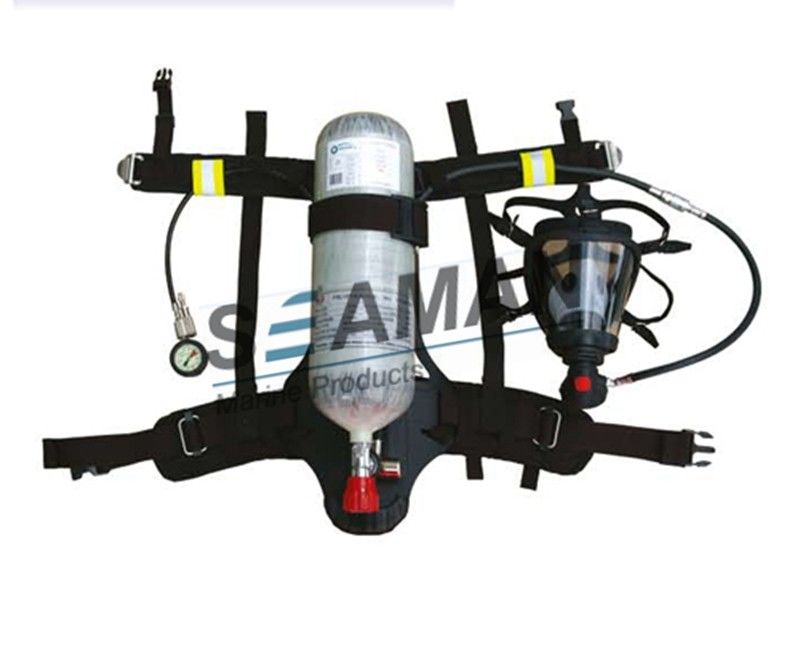

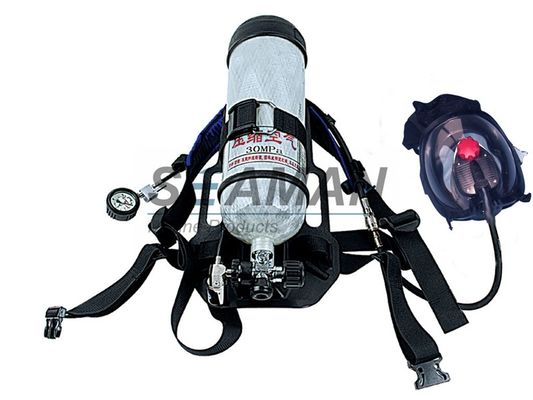

Firefighter Self Contained Air Breathing Apparatus Composite Cylinder Set
