|Working Pressure:||30Mpa||Application:||SCBA Cylinder Valve|
|Outlet:||Female G5/8“||Inlet:||M18 X 1.5|
|Burst Pressure:||40.5~45Mpa||Meter:||0 ～ 40Mpa|
self contained breathing apparatus,
escape breathing apparatus

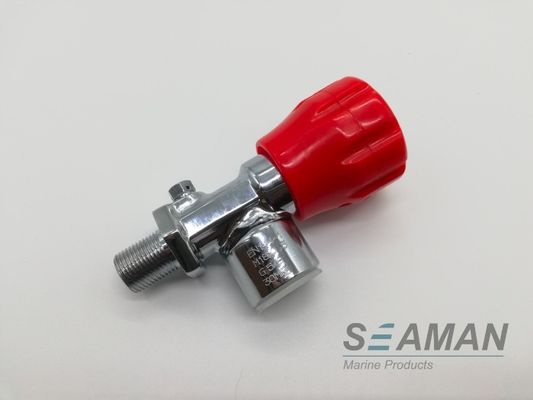

Gas Cylinder Valve High Pressure SCBA First Valve With Meter
Cylinder valve can open and close gas resource. the cylinder valve is equipped with over pressure protective diaphram. and when the inside pressure exceeds the rated working pressures by about 15%, the pressure will be released automatically.
after the cylinder's being assembled and airtight test of the normal working preesure is taken to be passed, every connection is air tight. so do not disassemble it in normal times.
In case of disassambly or repair, 30Mpa air pressure test should be taken after being reassembled. the output end cylinder valve thread is G5/5.
When using the cylinder, cylinder valve's handle bar should be turned more than two rotations in order to supply the respirator with sufficient gas
|Model||Breathing air valve|
|Air inlet connecting thread||M18 x 1.5|
|Air outlet connecting thread||Inside thread G5/8|
